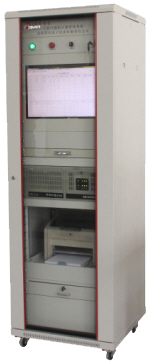

  • LWJG-B-II Cabinet Single PC
  •   Sort:Flow computers
  •   Count:2713
  • Introduce
  • PRODUCT INTRODUCTION

Description
LWJG-B-II integration flow computer is a multi-channel natural gas metering and management system that integrates metering, display, management, and control. The system with full Guoguang IP is compliant with GB/T 21446-2008, applied to the natural gas flow metering and management of small and medium sized gas distribution stations.

Function & Tech Spec:
Embedded industrial control system, 17’’ true color LCD monitor, standard keyboard and compact cabinet

Windows OS; Chinese GUI with various management functions, e.g. daily report, data search and print, gas acquisition/distribution curves, flow checking, instrument calibration, operation compensation calculation.

UPS backup power supply. The system will be automatically switched to low power consumption mode upon power failure, securing a 48-hour reliable operation.

Anti-shock, electromagnetic interference free and highly reliable power source for system host; highly reliable and anti-jamming

10-year+ data storage for inquiry, analysis, and printing of history data at any past moment

Anti-lighting system for the protection of power source and signal channel

out-of-limit alarm and automatic printing

Input channel: AI 8 points (4-20mA or 1-5V)

Dimension: 610mm*650mm*1700mm
